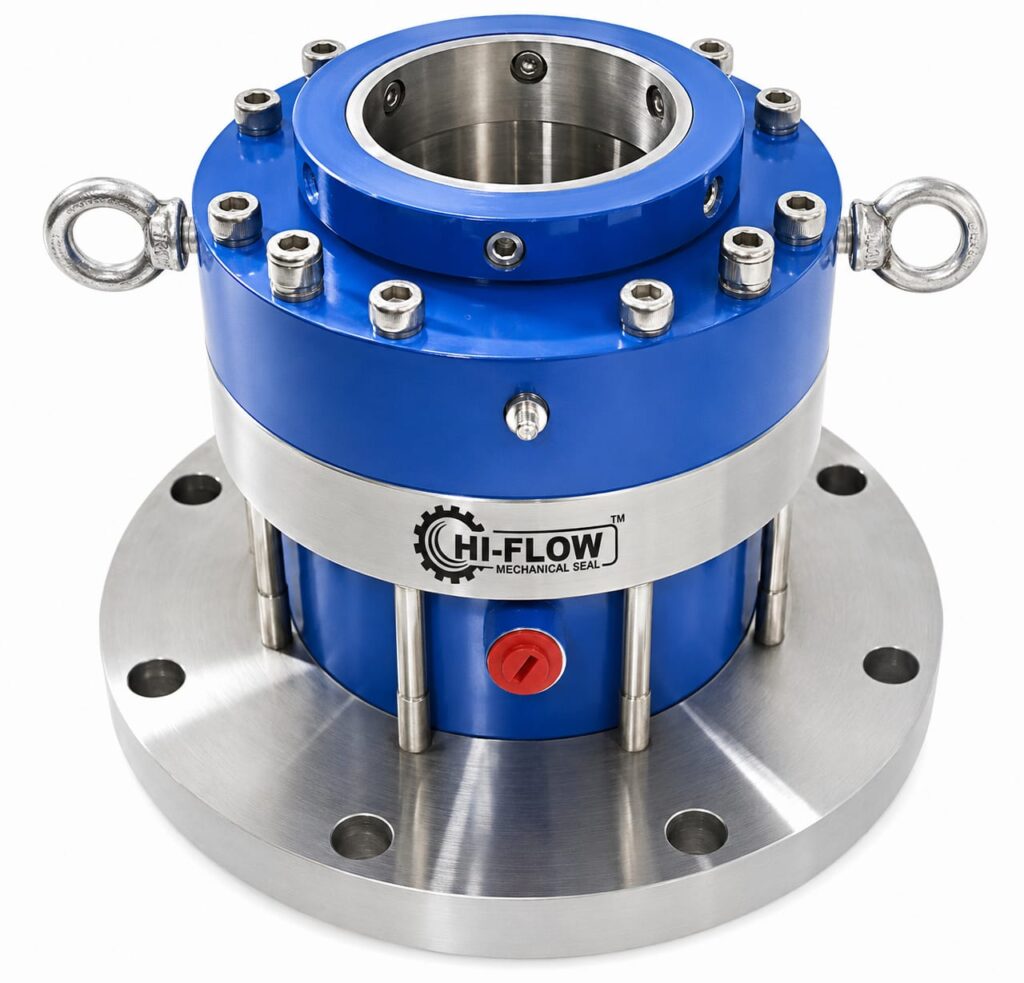

Agitator Mechanical Seal

HDRS/HSRS

Product Code: HDRS/HSRS

Product Overview

HDRS/HSRS is a high-performance agitator mechanical seal engineered for reliable sealing in demanding industrial pumps and rotating equipment. It is suitable for petrochemicals; chemicals; hydrocarbons and offers long service life with reduced maintenance. Seal characteristics: Double acting back-to-back, balanced cartridge with barrier fluid. The seal is manufactured using premium face materials and corrosion-resistant metal components to deliver dependable performance under challenging operating conditions.

Applications

Petrochemicals Chemicals Hydrocarbons

Face Materials

  • Carbon/Ceramic
  • Silicon Carbide
  • Tungsten Carbide
  • Lecrolly

Metal Parts

  • SS316
  • SS304
  • Carbon Steel
  • Hastelloy

Secondary Seal

  • PTFE/GFT
  • Elastomers

Operating Limits

Designed to deliver reliable sealing performance across demanding industrial applications.

Operating Shaft Diameter

25–150 mm

Pressure

Vacuum to 35 Bar

Temperature

Ambient to 200°C

Shaft Speed

600 rpm

Parameter Value
Operating Shaft Diameter 25–150 mm
Pressure Vacuum to 35 Bar
Temperature Ambient to 200°C
Shaft Speed 600 rpm
Barrier Fluid Pressure Vessel Pressure + 1.5 Bar
