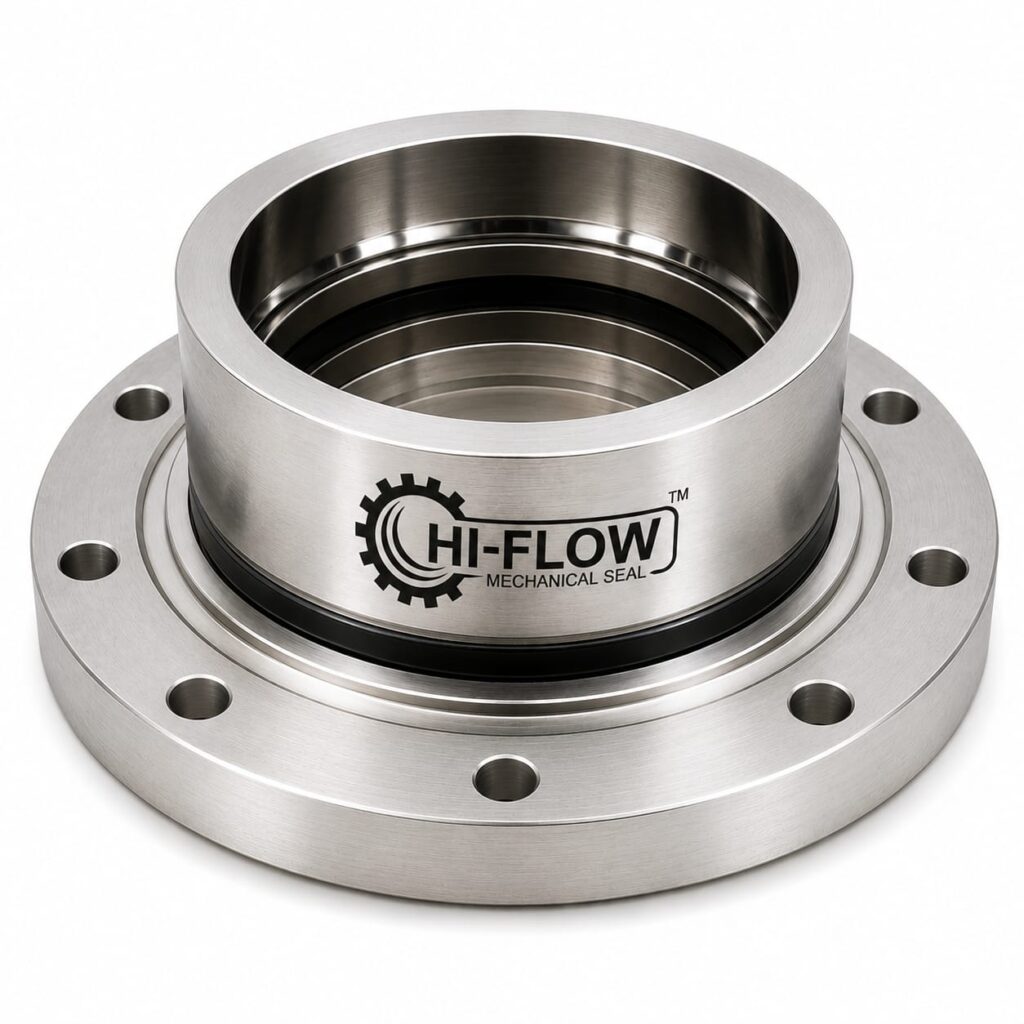

Dry Running Mechanical Seal

HSDS

Product Code: HSDS

Product Overview

HSDS is a high-performance dry running mechanical seal engineered for reliable sealing in demanding industrial pumps and rotating equipment. It is suitable for food products; pharmaceutical products and offers long service life with reduced maintenance. Seal characteristics: Single balanced, reverse balanced, outside mounted, dry running. The seal is manufactured using premium face materials and corrosion-resistant metal components to deliver dependable performance under challenging operating conditions.

Applications

Food Products Pharmaceutical Products

Face Materials

  • Carbon
  • Silicon Carbide

Metal Parts

  • SS316
  • SS304
  • Hastelloy-C
  • Hastelloy-B
  • Monel
  • Alloy-20

Secondary Seal

  • Elastomers
  • FEP
  • FFKM
  • PTFE
  • TTV

Operating Limits

Designed to deliver reliable sealing performance across demanding industrial applications.

Operating Shaft Diameter

15–150 mm

Pressure

10 Bar

Temperature

Ambient to 140°C

Speed

350 rpm

Parameter Value
Operating Shaft Diameter 15–150 mm
Pressure 10 Bar
Temperature Ambient to 140°C
Speed 350 rpm
